Albin Pump pulsation dampener model ALHP040 fits peristaltic pump models ALH025 and ALH032
Back to the product list

ALHP Inline Pulsation Dampeners

Pulsation is created by the peristaltic pump functioning principle. The rubber hose in the pulsation dampener adapts its volume to compensate pulsation and provide a smooth flow to the discharge line.

The Albin Pump ALHP inline pulsation dampener will reduce vibration and water hammer in your piping, thereby increasing the hose life.

This is achieved by means of a thick-walled, reinforced rubber hose, which is mounted in a carbon steel, cylindrical pressure vessel. The hose is surrounded by compressed air (nitrogen when ATEX equipped).

The Albin Pump ALHP inline pulsation dampener can cut up to 90% of the pulsation created by the pump.

ALHP pulsation dampeners are available in four sizes to cover ALH pumps from ALH25 to ALH125.


Albin Pump inline pulsation dampeners are easy to install and easy to use.

These top performing products offer:

  • Pulsation reduction up to 90%
  • Reduction of vibrations and water hammers
  • Very flexible in-line installation, with your preferred orientation (horizontal or vertical)
  • Hose and inserts as the only wetted parts
  • Hose and inserts in a wide variety of materials to match any chemical compatibility
  • The ability to be installed in hazardous area*

*In case of installation in a hazardous area, the dampener must be filled with nitrogen.

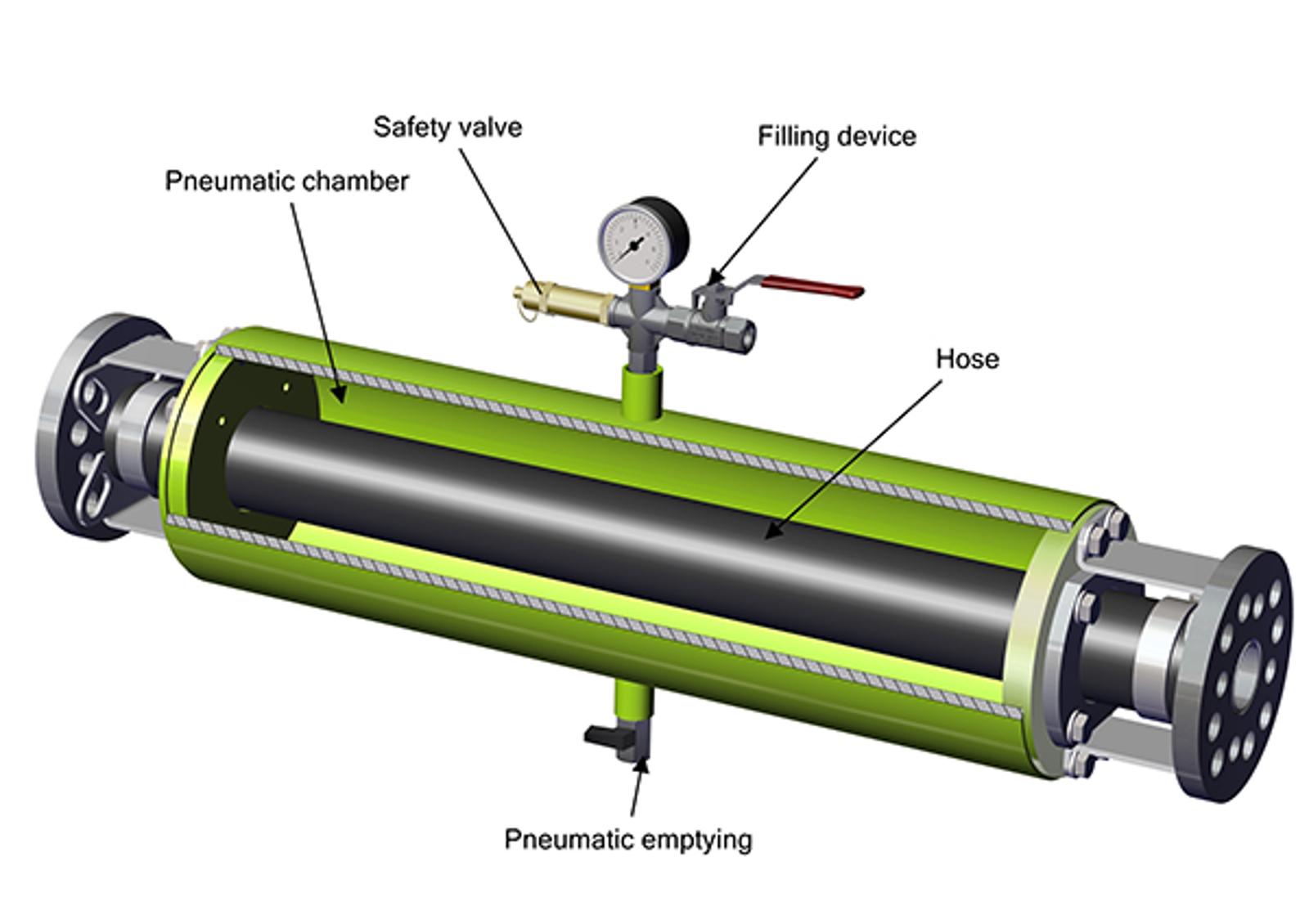

Albin Pump pulsation dampeners feature a pneumatic chamber, safety valve, filling device, hose, and pneumatic emptying port.

ALHP Model

Standard Connections

For Pump

ALHP040

Multiple holes flange DIN or ANSI (PN16, 150#)

ALH025, ALH032, ALH040, ALHX40

ALHP050

Multiple holes flange DIN or ANSI (PN16, 150#)

ALH050, ALH065, ALHX65

ALHP100

Multiple holes flange DIN or ANSI (PN16, 150#)

ALHX80, ALH080, ALH100

ALHP125

Flange DIN DN125 / PN16 or ANSI 5" / 150#

ALH125
