Albin Pump has developed and patented a revolutionary AODD pump.
The AODD is a compact diaphragm pump that is able to be mounted in any orientation, to fit in the tightest spaces.
Critical components can be quickly accessed while still connected in-line, reducing downtime. The improved valve design has resulted in a reduction in sound during operation.

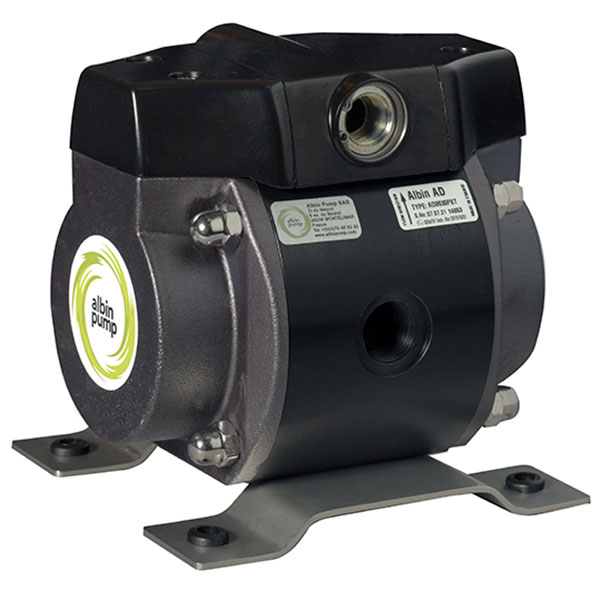

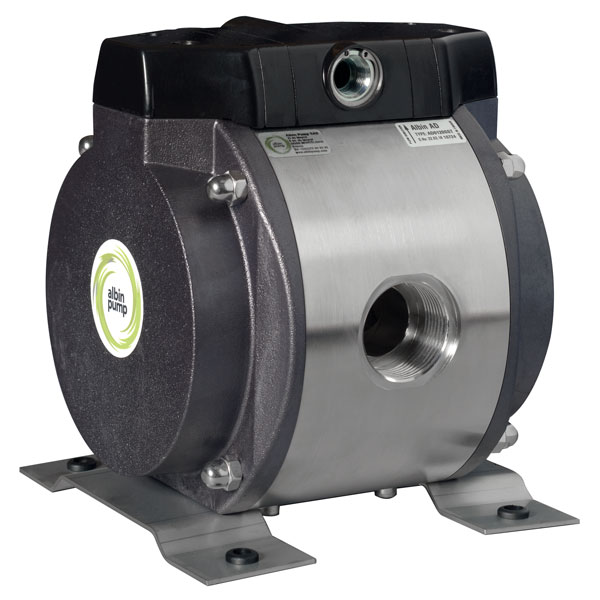

The Albin AD pump is designed for a large capacity and long service life. Compared to traditional AODD pumps, it offers 70% lower pulsation, 30-50 % lower air consumption, noise reduction and 3–5 times longer operation time between service intervals.
The compact outer measurements and capability to install the pump upside down, sideways or vertically means flexibility during installation and set up. What’s more, it is designed so that all vital parts are easily accessible without having to remove the pump from the pipe system, greatly minimizing downtime.
All of these improvements result in lower operational costs, reduced cost for spare parts and improved overall economy.
Advantages of our AD air operated double diaphragm pump:
*Relative to industry competitors
|Capacity||up to 130 l/min||up to 34.34 GPM|
|Viscosity||up to 3,000 cps||up to 3,000 cps|
|Temperature of pumped liquid||up to 60℃||up to 140℉|
|Differential pressure||up to 7 bar||up to 101.5 PSI|
|Discharge pressure||up to 7 bar||up to 101.5 PSI|
|Achievable suction||up to 0.7 bar||up to 10.2 PSI|
