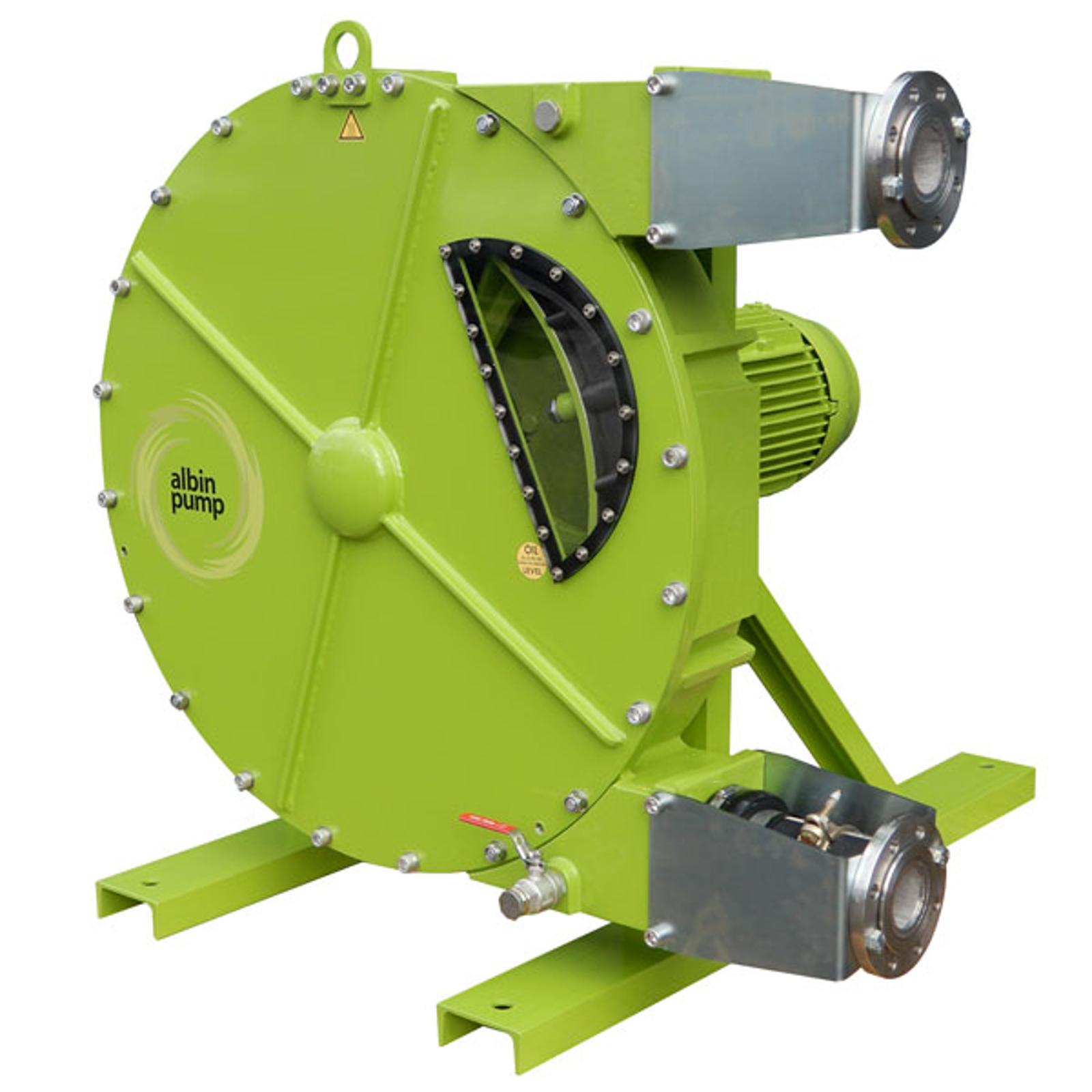

ALH High Pressure Hose Pump

ALH is our flagship peristaltic pump, built for high pressure applications up to 15 bar, with 16 sizes ranging up to 88 m3/h (387 gpm).

We have combined the best available materials with smart design solutions in order to maximize running time and minimize maintenance. This pump summarizes what we at Albin Pump want to achieve: better Pump Solutions for our customers. Our design enhances the pump’s simplicity and robust principle.

Request a Quote Request Service, Parts or Support

Features

Two shoes mounted at 180° on a rotating wheel compress successively a reinforced rubber hose that contains a fluid to be pumped.

The compression of the hose by the rotating shoes creates continuous suction at the inlet of the pump and pushes the fluid to the outlet of the pump.

The pump casing contains a lubricant that reduces friction and insures the best pump performance with a minimum of maintenance.

The pumped liquid is in contact with only the interior of the rubber hose, thus permitting the pumping of a wide variety of reactive fluids.

Learn more about how peristaltic pumps work.

Advantages

No mechanical seal or stuffing box
Robust, entirely of ductile iron
Suitable for aggressive or viscous fluids
Dosing of very corrosive chemicals
Reversible flow
Fully self-priming up to 9.8 m
Damage-free continuous dry running
Outlet pressures up to 15 bar (220 psi)
Very easy maintenance
Stainless steel screws
Heavy-duty bearings, greased for life
Two-year warranty
Plug and Play
Perfect volumetric flow
Close coupled with gearbox protection
Low sound level : < 70 dB at 1 meter

Specifications

	Metric	Imperial
Capacity	up to 88 m3/h	up to 387.4 GPM
Viscosity	up to 60,000 cps*	up to 60,000 cps*
Temperature of pumped liquid	up to 85℃**	up to 185℉**
Differential pressure	up to 15 bar***	up to 220 PSI***
Discharge pressure	up to 15 bar	up to 220 PSI
Achievable suction	up to 0.9 bar*	up to 13.05 PSI*
